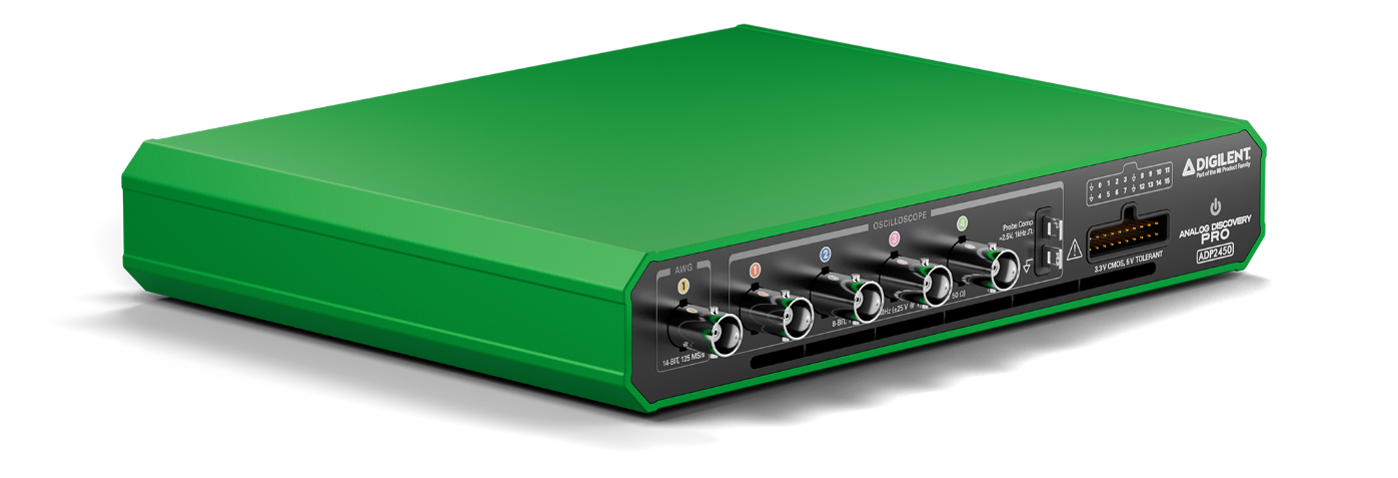

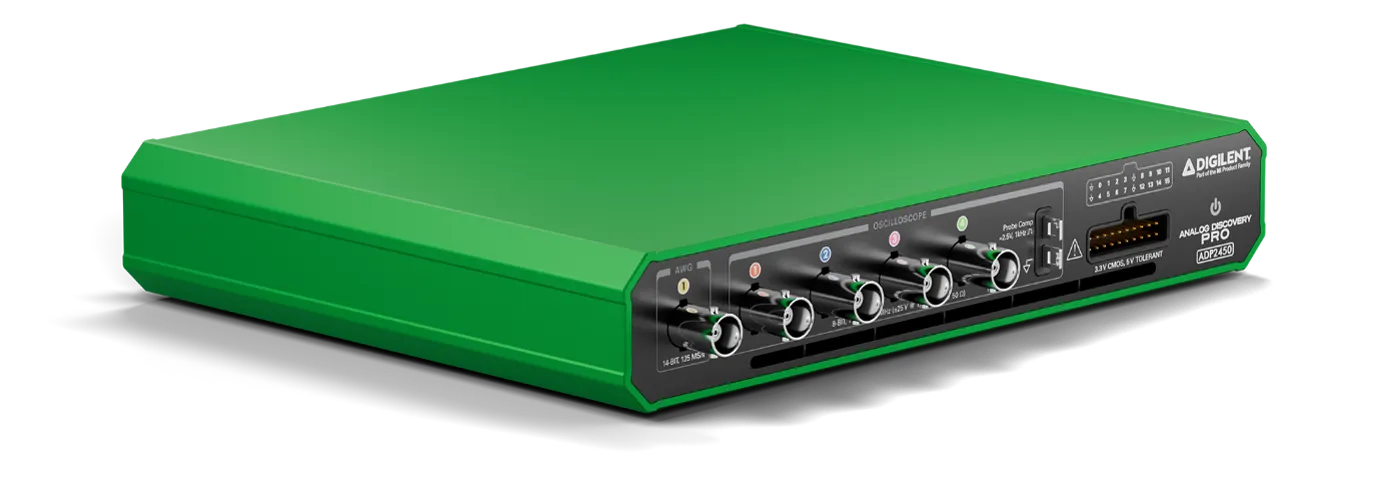

Analog Discovery Pro 2440 and 2450
The Analog Discovery Pro 2440 and Analog Discovery Pro 2450 deliver serious measurements for the engineer who knows what matters. Choose between four analog channels of either 100 MHz bandwidth at 12-bit resolution (ADP2440) or 200 MHz bandwidth at 8-bit resolution (ADP2450) with both featuring 16 i...
Product Details
1. True mixed-signal capability in a single device
Four analog inputs, 16 digital I/O, protocol decode and generation, deep memory, and a 14-bit waveform generator are integrated into one platform, eliminating the need for multiple instruments or paid feature add-ons.
2. Strong price-per-channel and capability density, maximized with 8‐channel Dual Mode
Compared to similarly priced USB oscilloscopes in key markets, the ADP2440/2450 deliver more channels, more integrated instruments, and a flexible 4‐channel architecture that can scale to 8 analog channels and 32 digital I/O through Dual Mode; reducing the overall setup cost.
3. Deep memory and high-speed capture
Hundreds of millions of samples, combined with memory segmentation, support long records and rapid repeated captures, enabling precise correlation of analog and digital events with low latency between acquisitions.
4. Dynamic range across real signals
A professional-grade analog front end with multiple true hardware input ranges from ±25 mV to ±25 V in 10 steps allows the ADC to operate near full scale at each voltage level, delivering more consistent resolution and signal fidelity across diverse measurements.
5. Unified software workflow backed by the trusted Analog Discovery ecosystem
WaveForms software and SDKs are included at no additional cost and are consistent across the Digilent Analog
